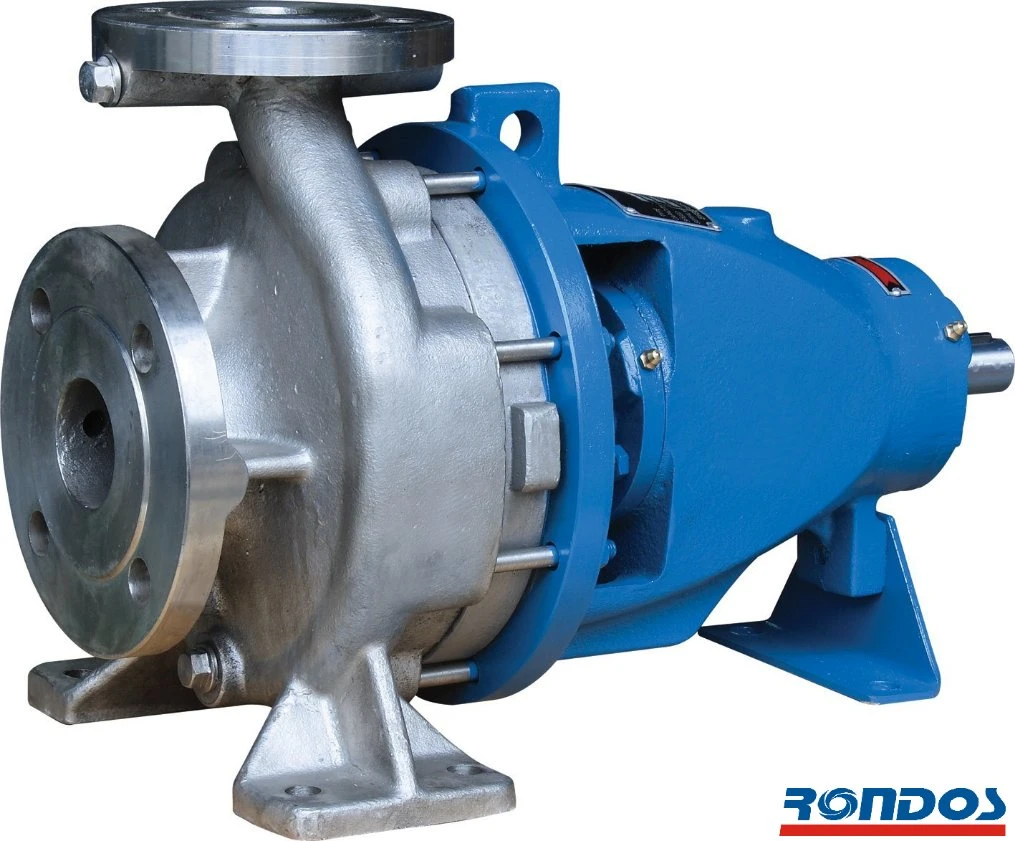

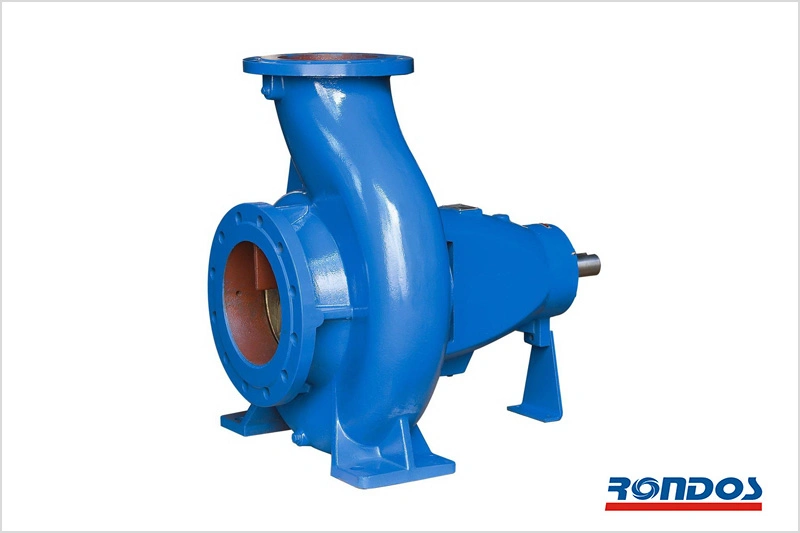

Design: Horizontal, Single-Stage Volute Casing pumps with dimensions and nominal ratings standard to DIN24255.
Type: End Suction Centrifugal, back pull-out
Flange: DIN2332 PN 10RF
Direction of Rotation: Clockwise as viewed from the drive side.
Material:
Casing - Cast Iron and Ductile Iron standard; optional Stainless Steel
Impeller - Bronze standard, optional Cast Iron & Stainless Steel
Shaft - AISI420 standard, optional AISI304 & AISI316
Shaft Seal - Mechanical Seal standard
Carbon-Sic/Vinton (optional)
Optional Gland Packing;
Operating Range:
Flow Rate(Q) : 2 -1100 m³/h
Head(H) : 2 - 150 m
Speed : 1450-2900 rpm (50HZ)
1750-3500 rpm (60HZ)
Temperature : 10ºC to 105ºC standard; optional 105ºC
Using pressure: 10Bar standard; optional 16Bar
